Which is more important for a fan, the maximum air flow or the maximum static pressure?

What are the maximum airflow rate and maximum static pressure?

Maximum Airflow Rate The maximum airflow rate represents the volume of air that a Fan is capable of discharging within a minute under a zero - resistance condition. It is commonly measured in units such as CFM (cubic feet per minute) or m³/min (cubic meters per minute). CFM quantifies the volume of air passing through a given cross - sectional area in one minute in the imperial system, while m³/min serves the same purpose in the metric system.

Maximum Static Pressure The maximum static pressure refers to the highest pressure that a fan can generate when the airflow is completely halted, which is analogous to a situation where the environment is fully sealed. The typical units for measuring maximum static pressure are Pa (Pascal) in the SI unit system and InchH₂O (inch of water column) in the imperial unit system. Pascal is a measure of force per unit area, and InchH₂O is based on the pressure exerted by a column of water with a height of one inch.

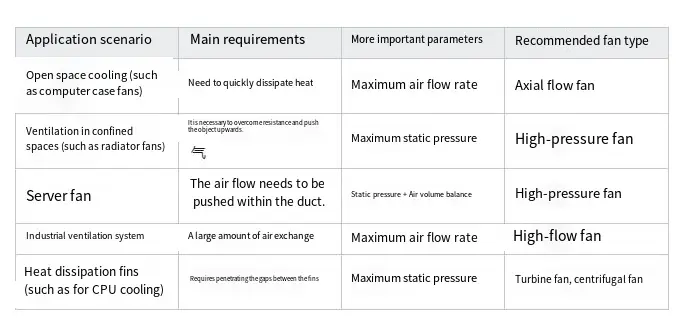

Their Functions in Diverse Scenarios

In practical applications, it is essential to refrain from solely concentrating on a single parameter. Instead, the operating environment of the fan must be comprehensively considered. The following elaborate on the requirements for air volume and static pressure across various application scenarios:

✅ If the fan operates in an open environment where air flow encounters no resistance, a high air volume fan is more effective.
✅ If the fan needs to overcome resistance from heat sinks, air ducts, etc., a high static pressure fan is more suitable.

How to choose the right fan?

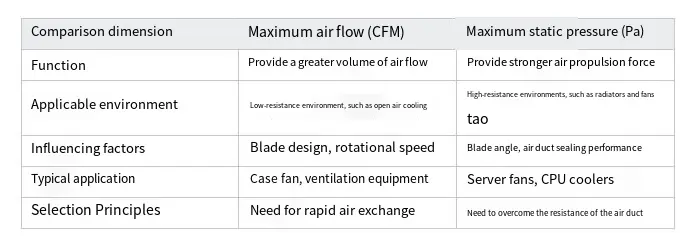

We can select the most suitable fan through its P-Q characteristic curve (static pressure - air volume curve). Here is a comp

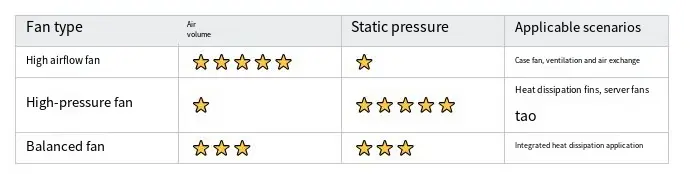

How to Select the Appropriate Fan?

✅ If you need a large amount of airflow, choose a fan with high CFM.
✅ If your cooling system has significant resistance, choose a fan with high static pressure (high Pa).
✅ If you need to balance both airflow and static pressure, choose a balanced fan.

Which is more important: maximum air flow or maximum static pressure?

✅ In a low-resistance environment, air volume is more important.
✅ In a high-resistance environment, static pressure is more crucial.

Conclusion: Strategies for Making the Optimal Fan Selection

In cases where a device depends on open - air cooling mechanisms (e.g., case fans), maximizing air flow becomes the primary consideration. This is because the unobstructed movement of air is essential for effective heat dissipation in such systems.

Conversely, when a device has to deal with significant resistance, such as in the case of heat sink fins or server air ducts, the maximum static pressure of the fan takes precedence. A fan with a high static pressure rating is better equipped to force air through these restrictive elements, ensuring proper cooling.

For applications that demand a harmonious balance between air flow and static pressure (e.g., specific industrial fans), a well - balanced solution is the most appropriate choice. This approach ensures that the fan can meet the complex requirements of the system without sacrificing either aspect disproportionately.

Making an informed decision regarding fan selection is not merely about enhancing device performance. It also has far - reaching implications, including noise reduction and improved cooling efficiency. A correctly chosen fan can operate more smoothly and quietly while effectively maintaining optimal operating temperatures for the device.
