Dynamic Balance Testing of Fan Blades

The dynamic balance testingof Fan blades is a critical component in ensuring fan quality. Proper dynamic balance not only guarantees the smooth operation of the fan but also significantly extends its service life. Conversely, poor dynamic balance can lead to increased noise, vibration, and energy consumption, ultimately compromising the overall performance and reliability of the fan. Therefore, dynamic balance testing is an essential step in both the production and maintenance of fans. Utilizing professional testing equipment allows for precise measurement of the fan blade's balance during operation.

1. Fine Balance Process:

① Configure the parameters of the balancing machine.

② Secure the fan blade assembly vertically on the test stator of the test frame, aligning the marked point with the infrared sensor.

③ Press the start button and review the balance value after the test completes. If the result is PASS or below the specified balance threshold, proceed; otherwise, add balancing material.

④ Select the material addition point: The computer displays the angle indicated by the red dot, which represents the angle for adding material. Hold the fan blade steady and remove the excess material.

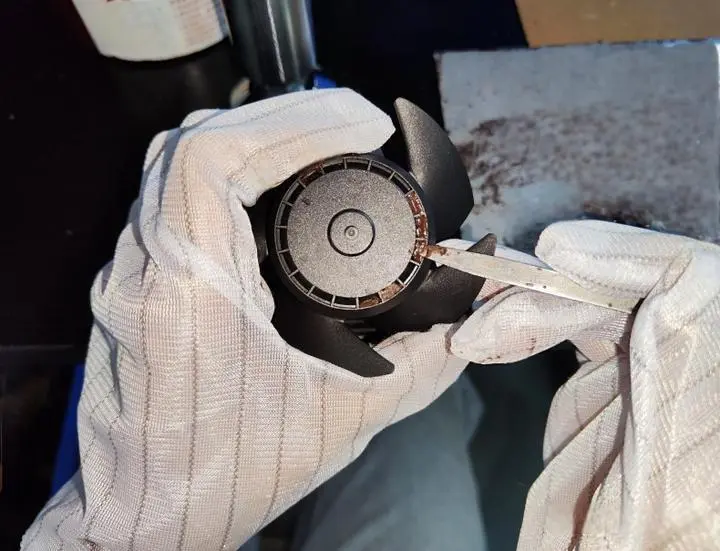

⑤ Using the small balance rod in your right hand, reposition and add the balancing material at the designated location. Repeat steps ②-④ until the test result is PASS.

2. Balance Testing:

To further ensure the balance of the fan blade, Fuqingda Electronic Technology will conduct multiple balance tests and make precise adjustments based on the test results. By adding or removing balancing weights, the fan blade is calibrated to meet predetermined balance standards. This step is crucial for ensuring stability during high-speed rotation.

In summary, the dynamic balance testing of the fan blade serves not only as a quality control measure in the production process but also as a key strategy to extend the service life of the fan and enhance operational efficiency. By focusing on this critical step, users can enjoy a quieter and more efficient fan experience.
