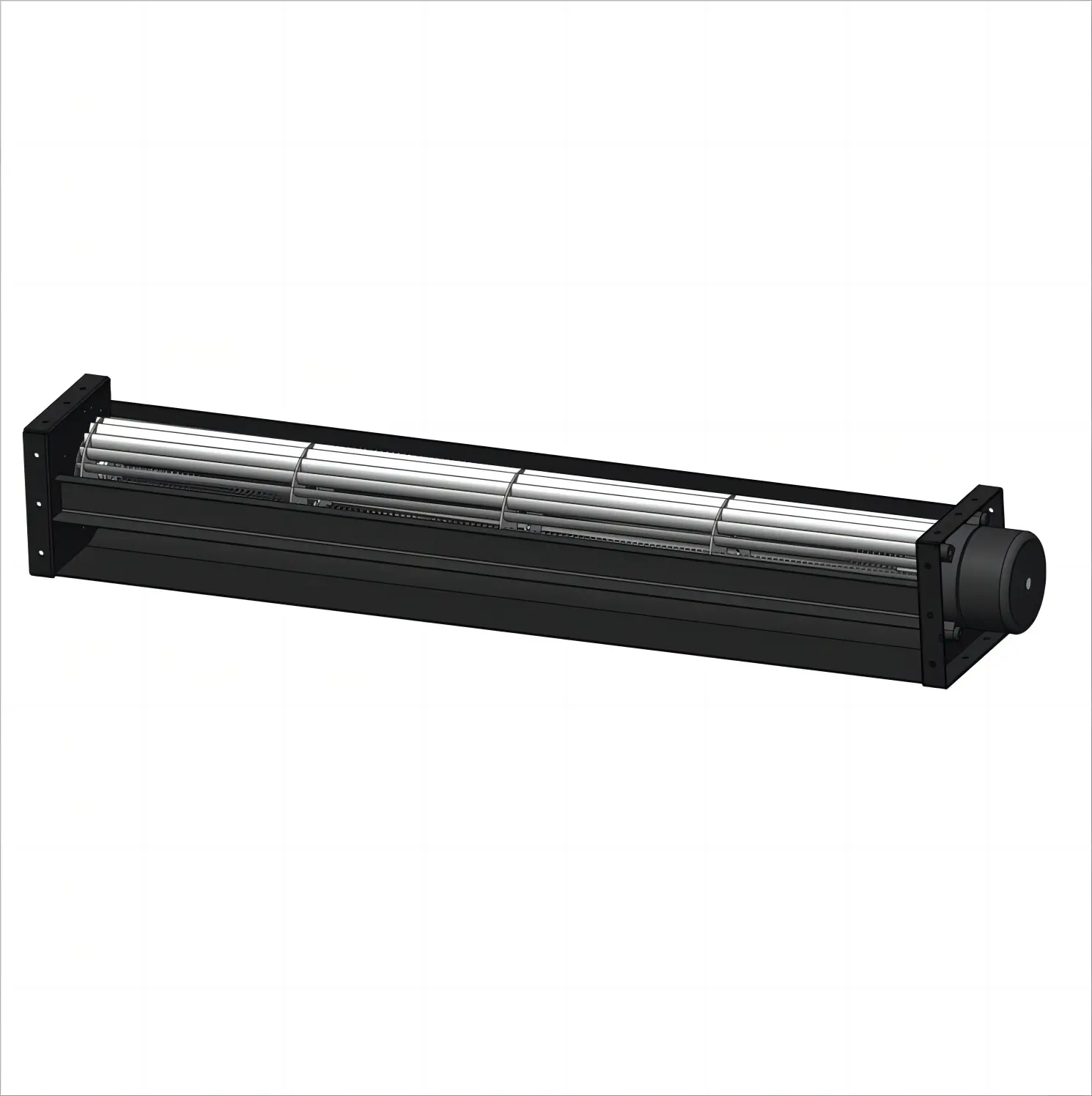

JED-040 Max Air Flow DC Cross Flow Fan
Product ParameterParameter
Additional Funtion:PWM orVotagle Control Available
|
Spec. Mode |
Size(mm) |
Rated Voitage (V) |
Rated Current (A) |
Speed (rp.m) |

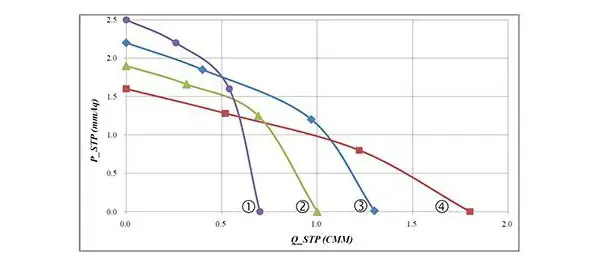

Max Pressure (mmAq) |
Maximun Air Flow (m3/min) |
Noise (dBA) |
Weight (g) |
|||

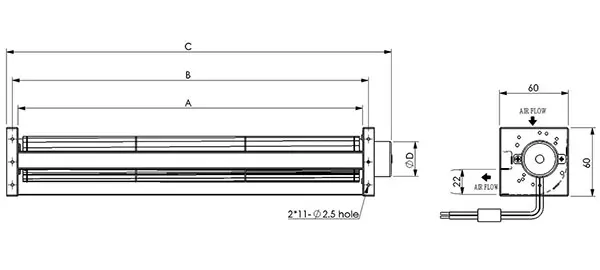

| A | B | C | D | ||||||||
| JED04009A12M | 98 | 108 | 133 | 31 | 12 | 0.22 | 2950 | 2.5 | 0.7 | 37 | 220 |
| JED04009A24M | 24 | 0.18 | |||||||||
| JED04015A12M | 160 | 170 | 195 | 31 | 12 | 0.25 | 2500 | 1.9 | 1.0 | 37 | 260 |
| JED04015A24M | 24 | 0.20 | |||||||||
| JED04019A12M | 198 | 208 | 233 | 31 | 12 | 0.29 | 2400 | 2.2 | 1.3 | 36 | 275 |
| JED04019A24M | 24 | 0.16 | |||||||||
| JED04029A12M | 300 | 310 | 335 | 31 | 12 | 0.33 | 2000 | 1.6 | 1.8 | 32 | 350 |
| JED-04029A24 | 24 | 0.18 | |||||||||
| JED-04030A24 | 310 | 320 | 350 | 31 | 24 | 0.30 | 2600 | 2.5 | 2.8 | 39 | 420 |
| JED-04035A24 | 360 | 370 | 400 | 31 | 0.32 | 2450 | 2.4 | 3.2 | 38 | 470 | |
| JED-04040A24 | 410 | 420 | 450 | 31 | 0.34 | 2400 | 2.3 | 3.5 | 37 | 510 | |
Product introductionintroduction
Introducing our high-performance wind wheels, designed to provide superior air volume and minimal noise for a variety of applications.
With a diameter of 40 mm, the rotor is ideal for use in clothes dryers, rework stations and a variety of other equipment requiring efficient air circulation.
The wind wheel is carefully crafted with a durable metal body that can withstand high temperatures, ensuring reliable performance even in demanding environments. The aluminum impeller not only contributes to its lightweight design but also effectively reduces operating noise, making it ideal for noise-sensitive applications.
The fan is equipped with durable ball bearings and has a service life of up to 20,000 hours, providing excellent durability and reliability. Additionally, the length of the length can be customized to specific requirements, providing flexibility for a variety of installation needs.
Our wind wheels not only offer superior performance, they are also easy to install, making them a convenient and efficient solution for your air circulation needs. Its high-quality construction and advanced design ensure smooth and efficient operation, helping to create an optimal work environment.
Whether you are looking to increase air circulation in your equipment or are looking for a reliable noise reduction solution, our wind wheels are the perfect choice. Experience the benefits of a high-flow, low-noise air circulation solution with our superior wind wheels, designed to meet your specific needs with precision and reliability.
Operating ambient temperature
Ball bearing: -30 to +75℃
Sleeve bearing: -10 to +70℃
10 meg ohms min, at 500V DC (between frame and terming)
Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
