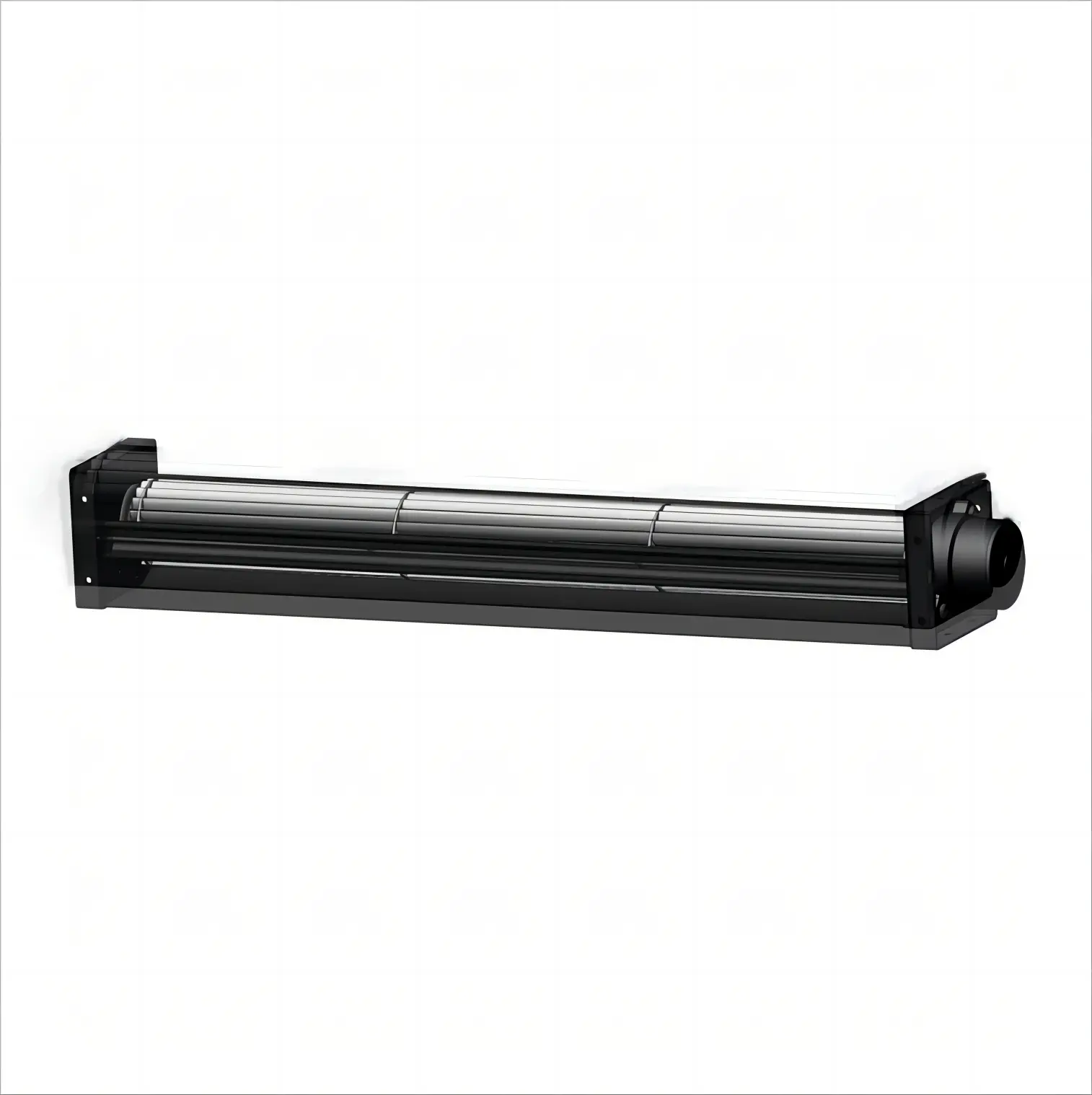

JED-030 DC Cross Flow Cooling Fan For Automation Equipment
Product ParameterParameter
Motor:DCBrushless type
| Spec. Mode |
Size(mm) | Rated Voltage (V) |
Rated Current (A) |
Speed (r.p.m.) |

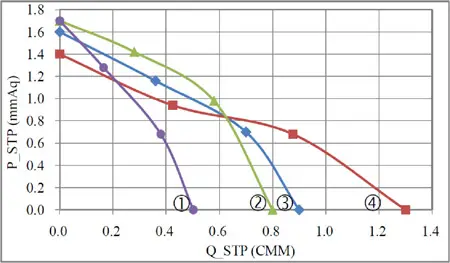

Max Pressure (mmAq) |
Maximun Air Flow (m²/min) |
Noise (dBA) |
Weight (g) |
||

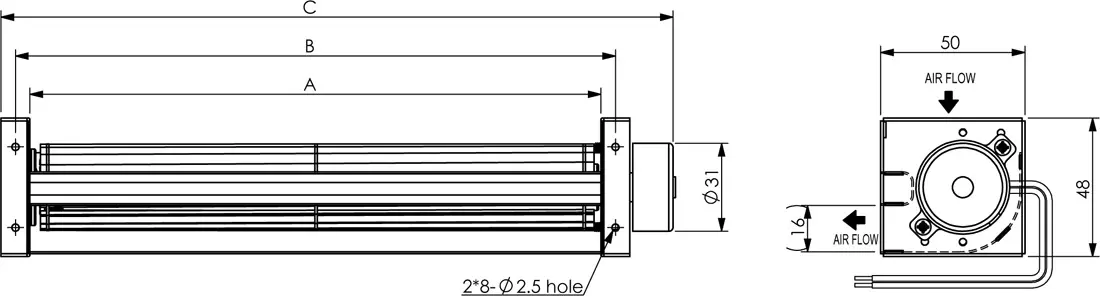

| A | B | C | ||||||||
| JED03009A12M | 98 | 108 | 133 | 12 | 0.17 | 3500 | 1.7 | 0.5 | 38 | 180 |
| JED03009A24M | 24 | 0.16 | ||||||||
| JED03015A12M | 160 | 170 | 195 | 12 | 0.22 | 3100 | 1.7 | 0.8 | 37 | 210 |
| JED03015A24M | 24 | 0.18 | ||||||||
| JED03019A12M | 198 | 208 | 233 | 12 | 0.25 | 2900 | 1.6 | 0.9 | 36 | 230 |
| JED03019A24M | 24 | 0.16 | ||||||||
| JED03029A12M | 300 | 310 | 335 | 12 | 0.29 | 2600 | 1.4 | 1.3 | 35 | 290 |
| JED03029A24M | 24 | 0.20 | ||||||||
Product introductionintroduction
Introducing our latest innovation in exhaust and cooling technology – the customizable aluminum wind wheel. The 30 mm diameter rotor can be customized to specific customer requirements and is designed to provide efficient and reliable performance for a variety of applications.
Made with a durable and impact-resistant metal frame, this wind wheel is built to withstand the rigors of continuous operation. The lightweight aluminum construction not only ensures low noise emissions but also a long service life, making it ideal for equipment requiring uninterrupted functionality over long periods of time.
Equipped with high-quality ball bearings, the rotor is designed to provide superior performance and is capable of operating continuously for more than 20,000 hours. This reliability ensures your equipment maintains optimal performance without the need for frequent maintenance or replacement.
Whether it's industrial machinery, electronic equipment, or other applications that require efficient exhaust or heat dissipation, our customizable aluminum wind wheels are the perfect solution. Its versatility and adaptability make it suitable for a wide range of environmental and operational requirements.
In addition to its exceptional performance, the customizable nature of this rotor allows us to customize its length to meet our customers’ specific needs. This level of customization ensures that the rotor integrates seamlessly into existing systems, providing a precise and efficient solution to exhaust and cooling needs.
We are committed to providing innovative and high-quality solutions to meet the ever-changing needs of our customers. With our customizable aluminum wind wheels, we are proud to offer reliable, efficient exhaust and cooling solutions that set new standards for performance and durability in the industry.
Operating ambient temperature
Ball bearing: -30 to +75℃
Sleeve bearing: -10 to +70℃
10 meg ohms min, at 500V DC (between frame and terming)
Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
