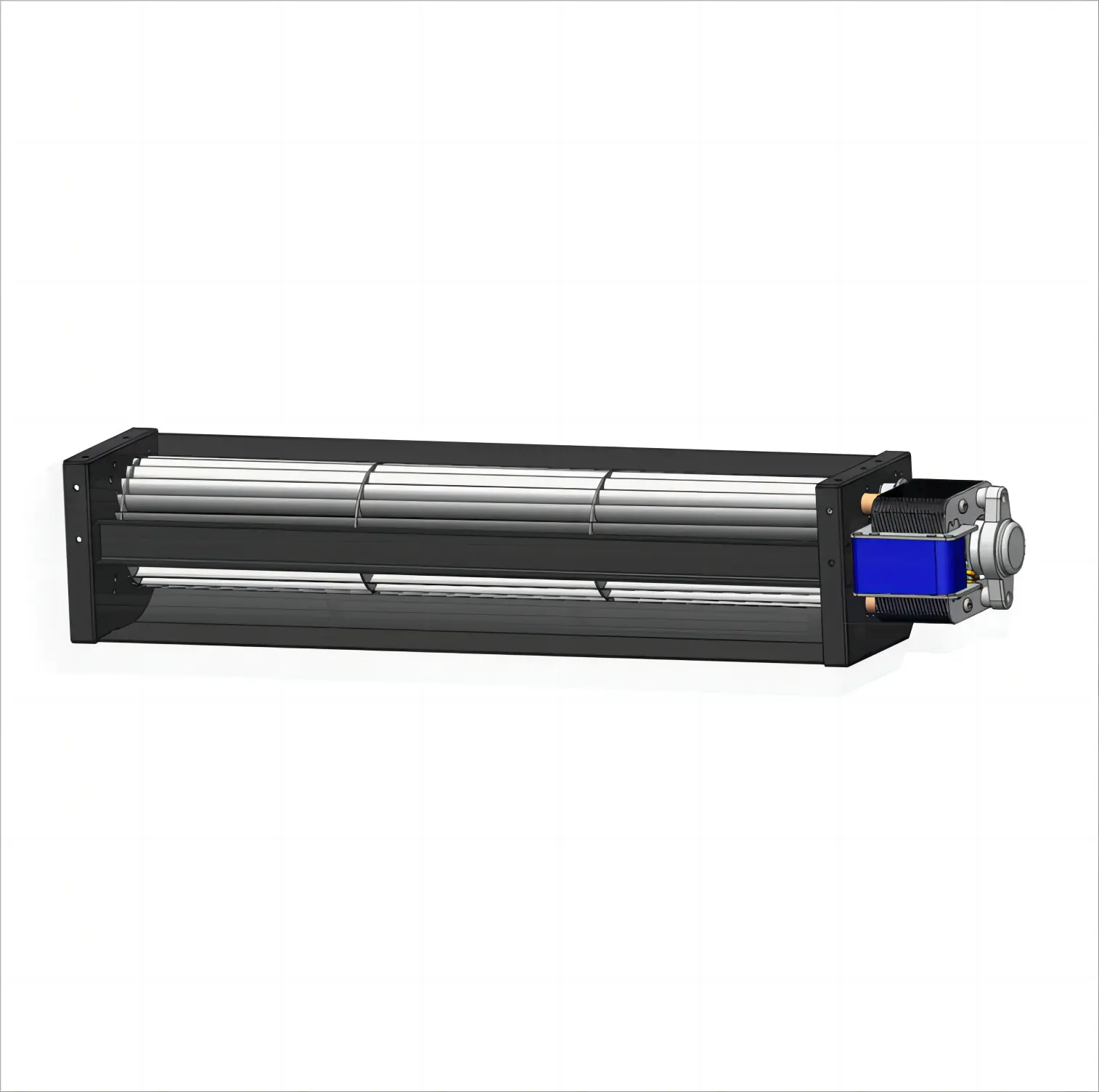

JE-050 Series AC Cross Flow Cooling Fan For Electric Fireplace
Product ParameterParameter
Motor:AC Shaded Pole type 1/2P

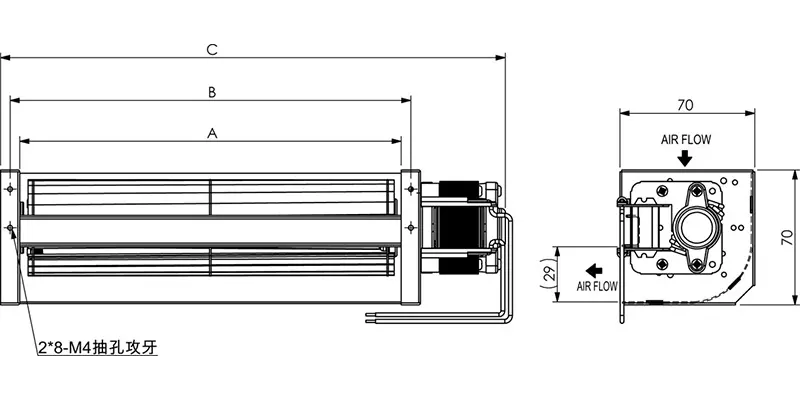

| Spec. Model |
Si A |
ze(m B |
m) C |
Rated Voltage (V) |
Rated Frequency (HZ) |
Rated Cument (A) |
Input Power (W) |
Speed (rp.m) |

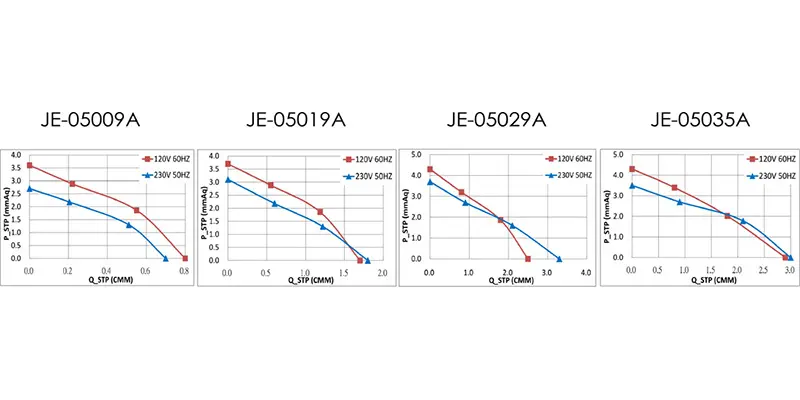

Max Pressure (mmAq) |
Maximun Air Flow (m³/min) |
Noise (dBA) |
Weight (9) |
| JE05009A12 | 98 | 108 | 162 | 120 | 50/60 | 0.15/0.13 | 11.0/10.0 | 2300/2400 | 2.7/3.6 | 0.7/0.8 | 38/39 | 610 |
| JE05009A23 | 230 | 50/60 | 0.09/0.07 | 11.5/10.5 | 2300/2400 | 2.7/36 | 0.7/0.8 | 38/39 | ||||
| JE05019A12 | 198 | 208 | 267 | 120 | 50/60 | 0.23/0.21 | 18.0/16.0 | 2200/1800 | 3.1/3.7 | 1.9/1.7 | 40/35 | 770 |
| JE05019A23 | 230 | 50/60 | 0.10/0.09 | 14.0/13.0 | 1900/1400 | 3.1/36 | 1.8/1.6 | 37/31 | ||||
| JE05029A12 | 298 | 308 | 377 | 120 | 50/60 | 0.35/0.33 | 24.0/24.0 | 2200/1800 | 3.7/4.3 | 3.3/2.5 | 46/41 | 1100 |
| JE05029A23 | 230 | 50/60 | 0.15/0.14 | 21.0/20.0 | 2100/1500 | 3.7/4.1 | 3.3/23 | 43/35 | ||||
| JE05035A12 | 358 | 368 | 437 | 120 | 50/60 | 0.35/0.33 | 23.0/23.0 | 2100/1500 | 3.7/4.3 | 3.1/2.9 | 42/36 | 1200 |
| JE05035A23 | 230 | 50/60 | 0.15/0.14 | 20.0/19.0 | 1900/1300 | 3.5/4.0 | 3.0/2.6 | 40/32 |
Product introductionintroduction
Introducing our latest innovation in ventilation technology - the customizable metal exhaust fan. Engineered with a durable all-metal body, this exhaust fan is designed to withstand impact and deliver powerful airflow with minimal noise. Its long lifespan ensures reliable performance for years to come, making it a cost-effective solution for various applications.
One of the key features of our exhaust fan is its customizable length, allowing for tailored installations to suit specific requirements. Whether it's for a repair station, a clothes dryer, or an electric fireplace, this exhaust fan is versatile and adaptable to different settings. Its simple installation process makes it a convenient choice for both residential and commercial use.
The robust construction of the metal exhaust fan ensures exceptional durability, making it suitable for demanding environments where resilience is essential. Its high resistance to impact and wear makes it a reliable choice for long-term use, providing peace of mind for users.
In addition to its durability, this exhaust fan is engineered to deliver high airflow while maintaining low noise levels. This ensures efficient ventilation without causing disruption, creating a comfortable and quiet environment for users.
With its combination of strength, performance, and adaptability, our customizable metal exhaust fan is a dependable solution for a wide range of ventilation needs. Whether it's for industrial, commercial, or residential applications, this exhaust fan is designed to deliver reliable and efficient airflow, making it an essential addition to any ventilation system.
Operating ambient temperature
Ball bearing: -30 to +75℃
Sleeve bearing: -10 to +70℃
10 meg ohms min, at 500V DC (between frame and terming)
Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
