I. Why Do High-Density Communication Devices Generate Significant Heat?

Heat Source Composition
•   High-Speed Processors/FPGAs: Intensive computational workloads result in thermal dissipation ranging from 100W to 300W.
•   High-Speed Interface Modules (e.g., 400G/800G Optical Modules): Power-hungry driver ICs contribute substantially to heat generation.
•   Power Conversion Modules: Thermal losses occur during AC/DC and DC/DC conversion processes.
•   RF Modules: Power amplifiers (PAs) typically exhibit only 30–50% energy efficiency.

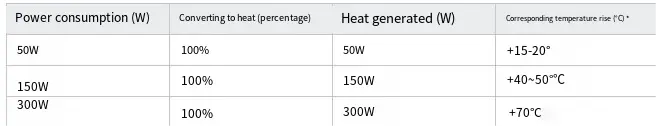

Power Consumption-to-Heat Dissipation Correlation Table (Approximate Values):

The temperature rise depends on factors such as the heat dissipation structure, air volume, and ambient temperature.

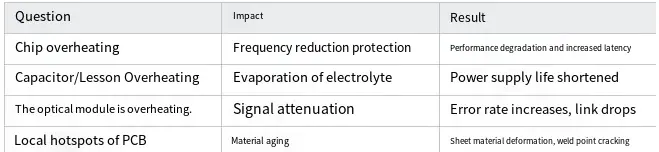

II. Consequences of Omitting Cooling Fans

Conclusion: In high-density communication equipment, thermal runaway not only compromises performance but may also result in complete system failure or even irreversible damage.

III. The Pivotal Role of Fans in Thermal Management

✅ Active Cooling: Unlike passive heat sinks, fans proactively facilitate airflow to rapidly dissipate thermal energy.
✅ Precision Temperature Control: Integrated with temperature sensors and PWM speed modulation, fans dynamically adjust airflow based on real-time demand.
✅ Space Efficiency: High-speed fans deliver superior cooling performance within confined spatial constraints.
✅ Enhanced MTBF: By reducing operating temperatures of critical components, each 10°C decrease extends service life approximately twofold (per Arrhenius' Law).

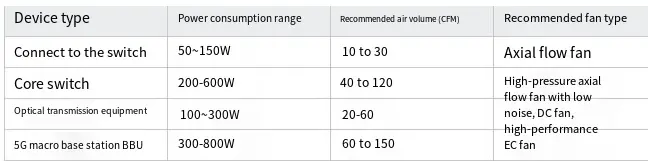

Typical Airflow Requirements for Communication Equipment (Assumed Temperature Rise ≤ 15°C):

IV. Fan Design Logic for High-Density Communication Equipment

1️⃣ Airflow Path Optimization → Ensures cold air passes through heat-generating components rather than forming short-circuit recirculation
2️⃣ Static Pressure Matching → High-density boards exhibit elevated flow resistance, necessitating high-static-pressure fans (with superior Pa ratings)
3️⃣ Acoustic Performance → Multi-device operation in communication rooms demands low-noise fans (with optimized dBA levels)
4️⃣ Redundancy & Hot-Swap Configuration → Dual-fan or N+1 redundancy design prevents single-point failure scenarios
5️⃣ Intelligent Speed Regulation → PWM/EC-controlled real-time RPM adjustment based on thermal conditions enhances operational longevity and energy efficiency

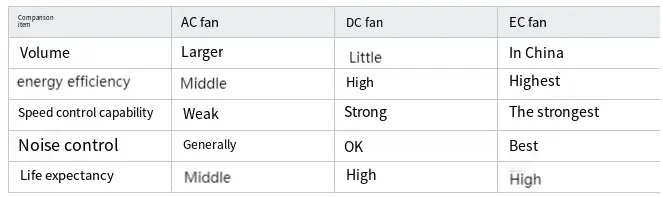

V. Why do communication devices mostly choose DC/Ec Fans instead of AC ones?

Field experience demonstrates that incorporating PWM speed control with DC/EC fans in communication cabinets effectively reduces noise levels while simultaneously extending the operational lifespan of both the fans and associated equipment.

VI. Communication Thermal Management Solutions by Shenzhen Fuqingda Electronics Technology Co., Ltd.

We provide comprehensive fan selection and thermal management solutions for the telecommunications industry, including:
• High-static-pressure axial fans: Optimized for high-density PCB airflow resistance
• Low-noise DC fans: Ideal for telecommunication equipment rooms
• Energy-efficient EC fans: Delivering 20-40% power savings during prolonged operation
For inquiries regarding these solutions, please contact our team.
