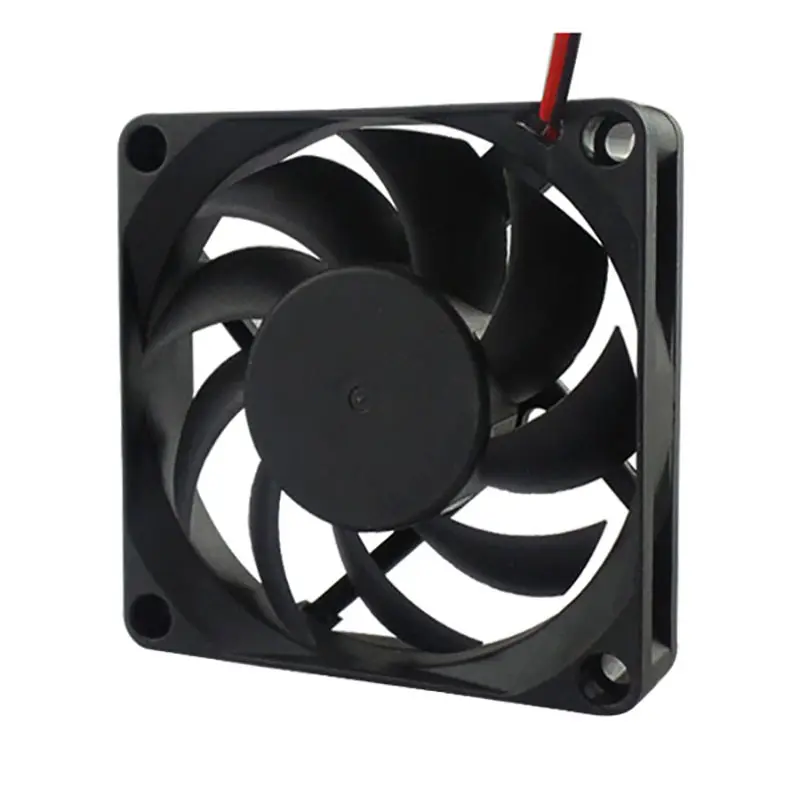

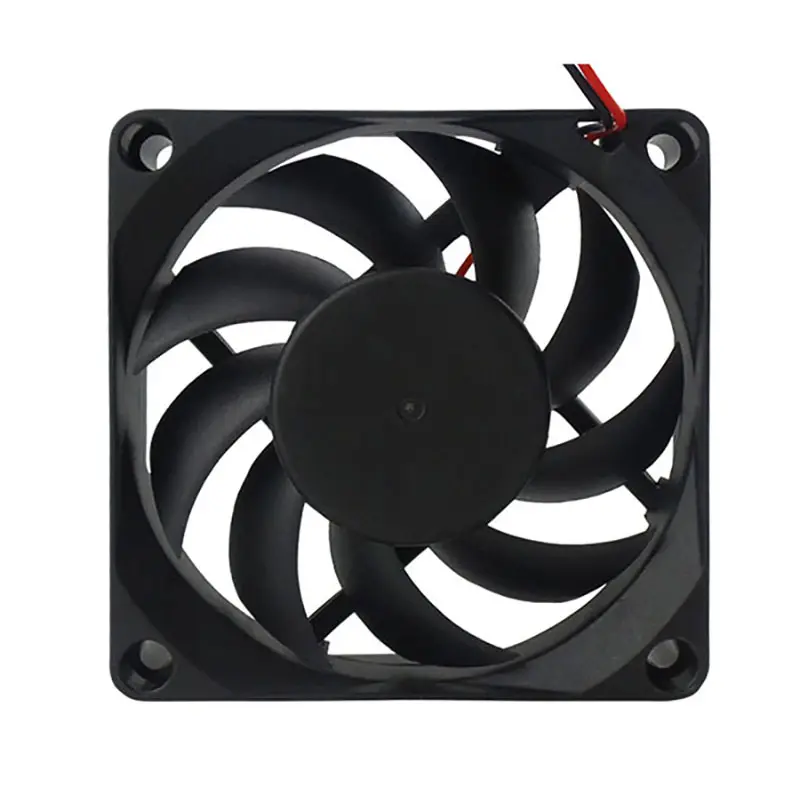

DC7015 70*70*15mm 7015 DC Cooing Fan For Automation Equipment

Peculiarity: low noise, max air flow

Construction:

Glass fiber reinforced plastic: Impeller and housing PBT are UL 94V0 rating

Operating temperature:

Ball bearing: -30℃to +75℃

Sleeve bearing: -10℃to +70℃

Insulation resistance:

10 meg ohm min, at 500VDC (Between frame and termind)

Dielectric strength:

5mA max at 500V AC 60HZ one minute(Between frame and terminal)

Function:

Frequency generator signal option,RD signal ,PWM signal

    Product ParameterParameter

    Model Bearing
    type
    Rated Voltage Current Speed Air Flow Pressure Noise Weight
    VDC A RPM CFM mmH₂O dBA g
    FD2470157S/B Sleeve/Ball 24 0.15 4000 32.66 3.73 34.5 42
    FD2470155S/B 0.12 3600 29.30 3.14 32.6
    FD2470153S/B 0.08 3000 25.09 1.97 26.7
    FD1270157S/B Sleeve/Ball 12 0.30
    4000 32.66 3.73 34.5
    FD1270155S/B 0.24 3600 29.30 3.14 32.6
    FD1270153S/B 0.16 3000 25.09 1.97 26.7

    701504y92701505f41

    Product introductionintroduction

    Introducing the new 7CM fan, the ultimate solution for a variety of applications.  This multi-functional fan is widely used in various industries, including laser engraving machines, monitoring equipment, computer embroidery machines, automation equipment, etc.  With its compact size and powerful performance, it is the perfect choice for applications where space is limited.

    One of the main features of this 7CM fan is its large air volume, which ensures efficient cooling of the device in different environments.  Whether in a compact cabinet or with limited installation space, this fan provides superior airflow to maintain optimal operating temperatures.  Additionally, its low-noise operation ensures a quiet working environment, making it ideal for applications where noise levels need to be minimized.

    Installation of this 7CM fan is a breeze thanks to its user-friendly design.  It can be easily integrated into existing systems, saving time and effort during setup.  Its compatibility with a variety of equipment makes it a versatile cooling solution for a variety of industrial and commercial environments.

    The durable construction of 7CM fans ensures long-term reliability, providing continuous cooling performance for critical equipment.  Its rugged design can withstand harsh environments, making it a reliable choice for industrial applications.

    All in all, the 7CM fan is the perfect combination of performance, versatility and ease of installation. Whether cooling sensitive electronic components or maintaining optimal operating conditions in industrial environments, this fan delivers superior results.  Its compact size, large air volume, low operating noise and easy installation make it an ideal cooling solution for applications with limited installation space.  Upgrade your device cooling system with a 7CM fan and experience efficient, reliable, and quiet operation.
