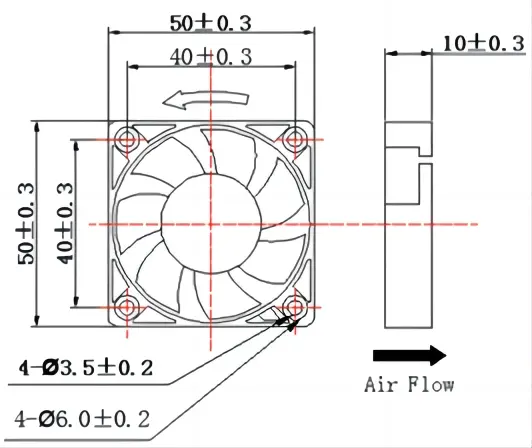

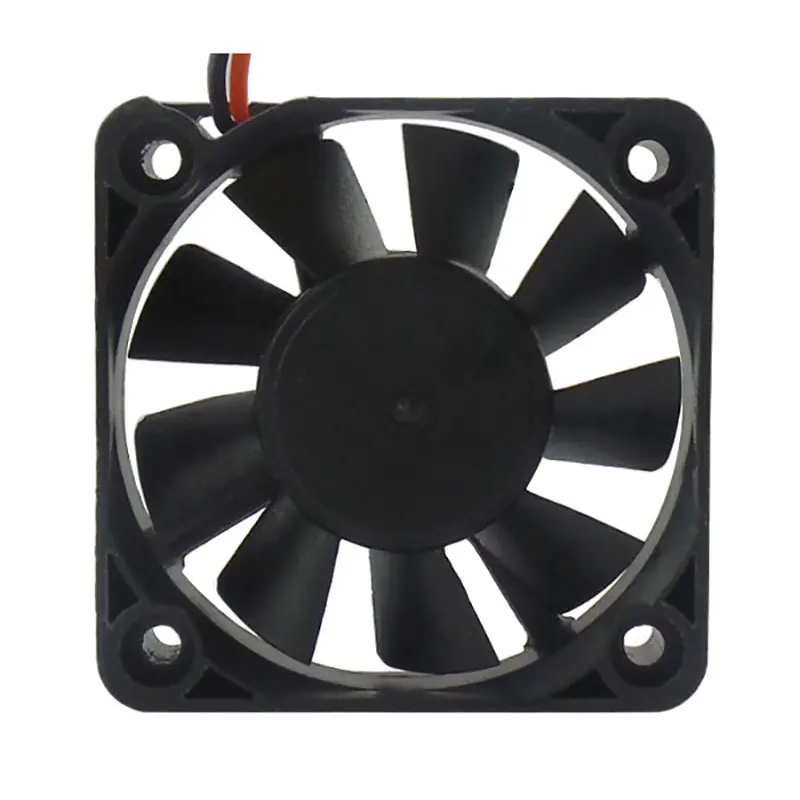

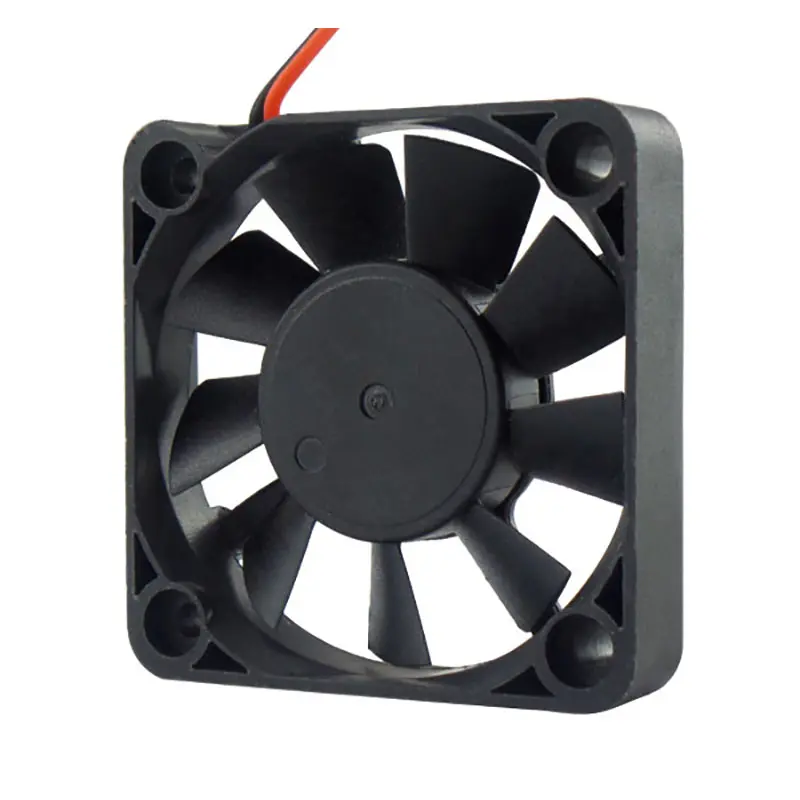

DC5010 50*50*10 mm Special Fan For The Monitor
Product ParameterParameter
| Model | Bearing Type | Rated Voltage | Current | Speed | Air Flow | Pressure | Noise | Weight |
| VDC | A | RPM | CFM | mmH2O | dBA | |||
| FD2450107S/B | Sleeve/Ball | 24 | 0.11 | 6000 | 12.52 | 2.84 | 34.0 | 16 |
| FD2450105S/B | 0.09 | 5000 | 10.43 | 2.37 | 28.5 | |||
| FD2450103S/B | 0.06 | 4000 | 8.34 | 1.90 | 22.8 | |||
| FD1250107S/B | Sleeve/Ball | 12 | 0.15 | 6000 | 12.52 | 2.84 | 34.0 | |
| FD1250105S/B | 0.12 | 5000 | 10.43 | 2.37 | 28.5 | |||
| FD1250103S/B | 0.08 | 4000 | 8.34 | 1.90 | 22.8 | |||
| FD0550107S/B | Sleeve/Ball | 5 | 0.18 | 6000 | 12.52 | 2.84 | 34.0 | |
| FD0550105S/B | 0.15 | 5000 | 10.43 | 2.37 | 28.5 | |||
| FD0550103S/B | 0.10 | 4000 | 8.34 | 1.90 | 22.8 |
Product introductionintroduction
Introducing our latest innovation in cooling and exhaust technology – the environmentally friendly brushless DC motor. Designed to meet the cooling and exhaust needs of surveillance equipment, our products offer a range of features that make them an excellent choice for users looking for efficiency, reliability and low energy consumption.
The brushless DC motor at the heart of our product sets it apart from traditional cooling and exhaust systems. Not only is this motor environmentally friendly, it also uses low energy, making it a cost-effective and sustainable choice for businesses and individuals. Characterized by long life and quiet operation, our products are designed to provide reliable, efficient performance while minimizing environmental impact.
One of the main advantages of our products is their versatility. It provides a variety of air volumes to meet the specific needs of different users, ensuring that it can meet the requirements of various monitoring equipment. This flexibility makes it ideal for businesses and organizations with varying cooling and exhaust needs.
In addition to performance and efficiency, our products are built to last. Equipped with ball bearings, it is designed for durability and reliability, ensuring it can withstand the demands of continuous operation. This makes it a long-term investment for businesses and individuals looking for reliable cooling and exhaust solutions.
In addition, our products offer convenient options of FG signals and RD signals, providing users with additional control and customization options. This feature enhances the usability and adaptability of our products, making them a versatile and user-friendly option for a variety of applications.
In summary, our environmentally friendly brushless DC motor cooling and exhaust systems are a reliable, efficient, and versatile solution for monitoring equipment cooling and exhaust needs. With its low energy consumption, long life, quiet operation and customizable air volume, it is the best choice for businesses and individuals looking for sustainable, high-performance cooling and exhaust solutions.
