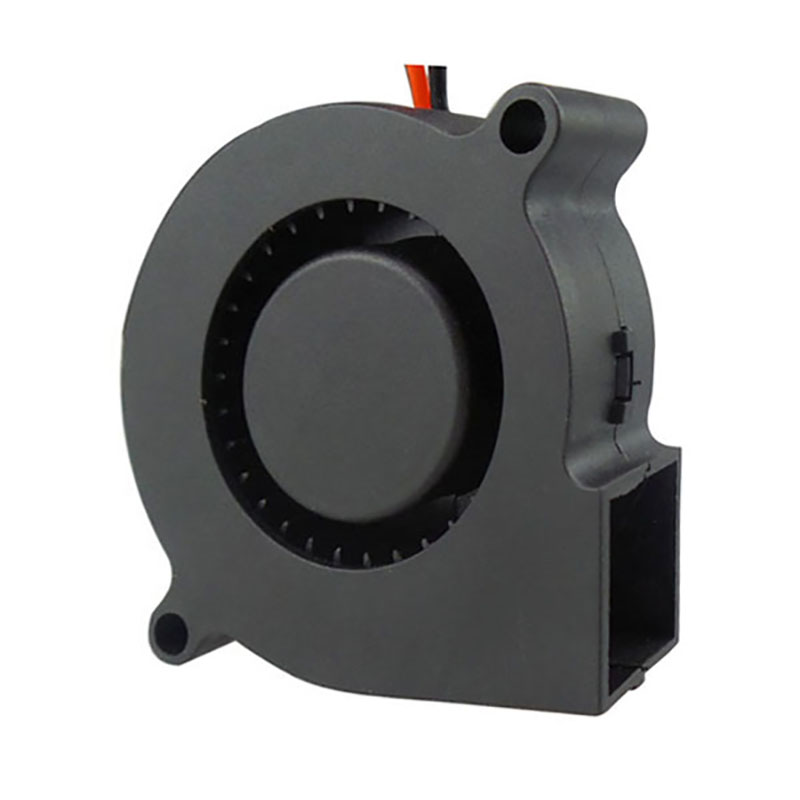

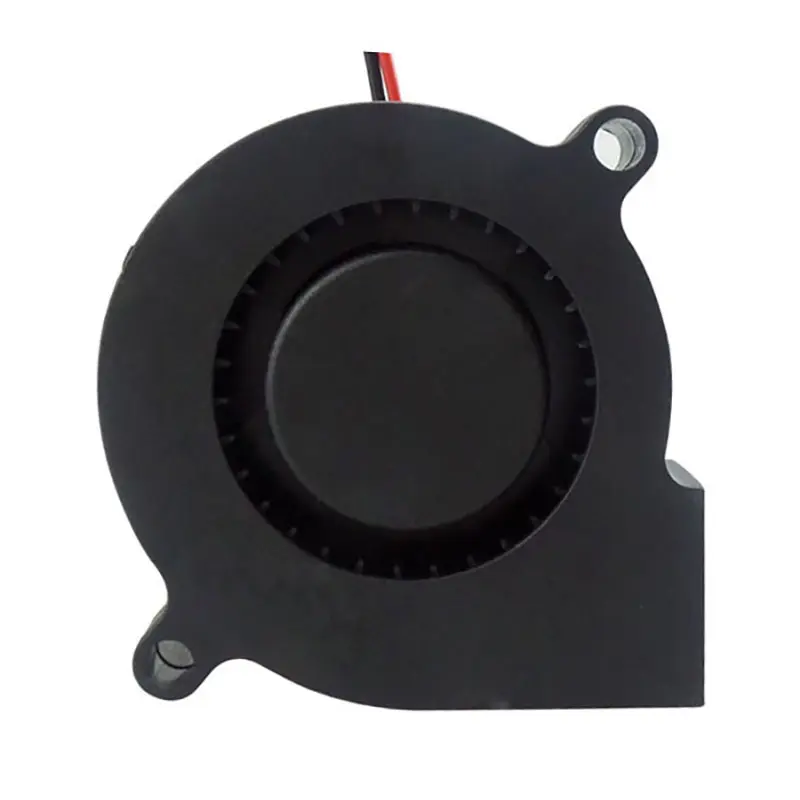

B5015 50*50*15mm A High-Performance Airflow Solution
Product ParameterParameter
| Model | Bearing Type | Rated Voltage |
Current | Speed | Air Flow | Pressure | Noise | Weight | |
| VDC | A | RPM | CFM | mmH₂O | dBA | g | |||
| BD1250159S/B | Sleeve/Ball | 12 | 0.12 | 5000 | 4.38 | 17.50 | 40.5 | 25 | |
| BD1250157S/B | 0.10 | 4500 | 3.84 | 14.96 | 36.5 | ||||
| BD1250155S/B | 0.06 | 4000 | 3.50 | 10.11 | 32.4 | ||||
| BD1250153S/B | 0.05 | 3500 | 3.07 | 8.40 | 28.3 | ||||
| BD0550159S/B | Sleeve/Ball | 5 | 0.21 | 5000 | 4.38 | 17.50 | 40.5 | ||
| BD0550157S/B | 0.16 | 4500 | 3.84 | 14.96 | 36.5 | ||||
| BD0550155S/B | 0.13 | 4000 | 3.50 | 10.11 | 32.4 | ||||
| BD0550153S/B | 0.10 | 3500 | 3.07 | 8.40 | 28.3 | ||||
Product introductionintroduction
Say hello to the Compact Blower, a game-changing product designed to meet the needs of a variety of applications including 3D printers, controllers, and more. This innovative blower features a sleek and slim design, making it the perfect solution for situations where space is limited. Despite its small size, this blower offers excellent performance, delivering high air pressure and low noise levels.
Compact blowers are designed to provide powerful airflow while maintaining a compact profile. Its small size makes it ideal for applications where traditional blowers may not fit or are too bulky. Whether you need to cool electronic components in a limited space or need efficient air circulation in a compact environment, this blower can meet your needs.
One of the standout features of compact blowers is their high air pressure capabilities. This means it effectively directs airflow to targeted areas, ensuring efficient cooling and ventilation. Whether you want to increase the performance of your 3D printer or maintain the optimal operating temperature of your electronics, this blower provides the airflow you need to get the job done.
In addition to its impressive performance, this compact blower is designed with noise reduction in mind. Its advanced engineering minimizes operating noise, providing a quieter environment without compromising airflow efficiency. This makes it an excellent choice for applications where noise levels need to be kept to a minimum.
Compact blowers combine small size, high air pressure and low noise into a versatile and reliable solution for a variety of applications. Whether you're a hobbyist, professional, or enthusiast, this blower is sure to meet and exceed your expectations. Experience the power of compact airflow with a compact blower.2. Operating ambient temperature
Ball bearing: -30 to +75℃
Sleeve bearing: -10 to +70℃
Insulation resistance:
10 meg ohms min, at 500V DC (between frame and terming)
Dielectric strength: 5mA max at 500V/AC/60Hz one minute (between frame and terminal)
Functions: Frequency generator signal option
Rated voltage: 12V .5V
