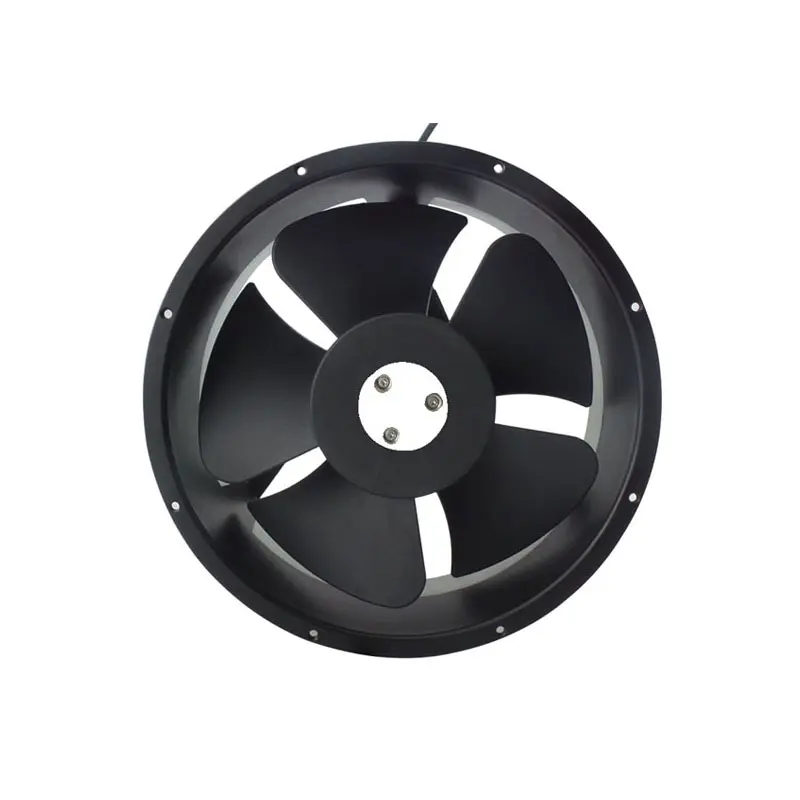

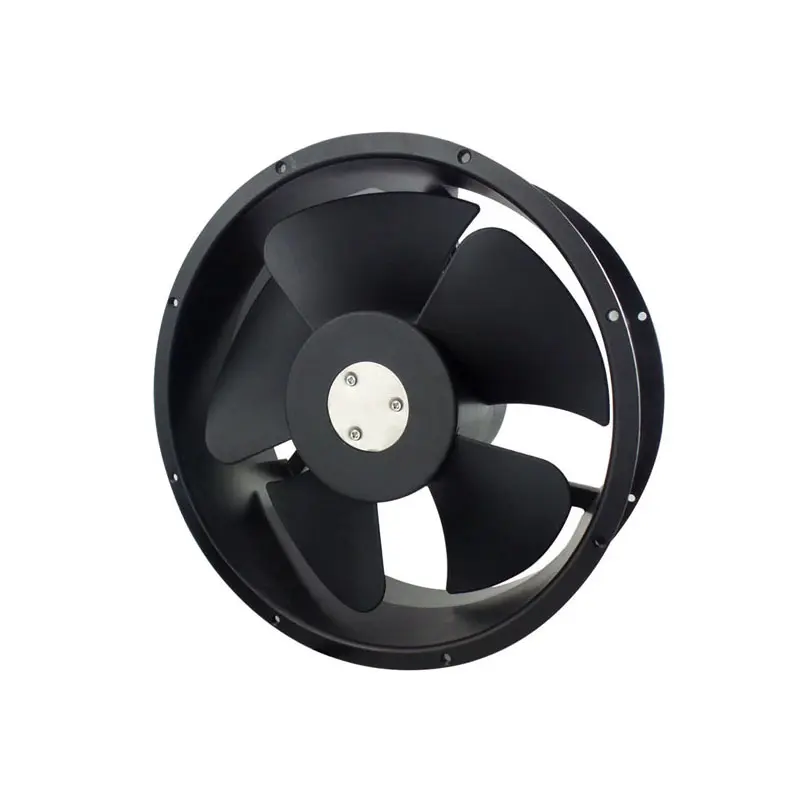

A25489 254*89mm AC axial fan for Large spinning frame
Product ParameterParameter
| ★Specifications | ||||||||||
| Model | Bearing System | Rated Voltage (V) |
Freq (Hz) |
Current (A) |
Input Power (W) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mmH2o) |
Noise (dBA) | Weight (g) |
| 25489HB1 | Ball | 110 | 50/60 | 0.41/0.59 | 44/63 | 2200/2600 | 700/800 | 19.8 | 80 | 2100 |
| 25489HB2 | Ball | 220 | 50/60 | 0.22/0.18 | 45/62 | 2600/2600 | 800/800 | 19.8 | 80 | 2100 |
| 25489HB3 | Ball | 380 | 50/60 | 0.15/0.18 | 50/68 | 2700/2700 | 800/800 | 19.8 | 80 | 2100 |
Product introductionintroduction
Introducing our high performance large AC axial fans designed to meet the specific needs of industrial applications, especially the textile industry. This rugged fan is designed to provide efficient exhaust for large textile machines, ensuring optimal performance and longevity.
Focused on functionality and durability, our large AC axial fans effectively remove fine dust particles generated during the textile manufacturing process. Doing so helps maintain a clean work environment and prevents dust from accumulating inside the machine, ultimately helping to increase operational efficiency.
One of the main features of our fans is their ability to provide high volumes of exhaust air, which is essential to dissipate the heat generated by textile machines. This ability not only helps regulate the temperature inside the machinery, but also helps improve the overall safety and reliability of the equipment.
The fan uses a shaded pole motor, which generates low heat, which not only improves the energy efficiency of the fan, but also extends its service life. This ensures that the fans continue to operate reliably for an extended period of time, reducing maintenance requirements and associated downtime.
In addition to their functional benefits, our large AC axial fans are designed for ease of installation and operation. Its sturdy construction and high-quality materials make it suitable for harsh industrial environments, while its user-friendly design simplifies maintenance and repair tasks.
Overall, our large AC axial fans are a reliable solution for textile manufacturers looking for an efficient and reliable exhaust system for their large machines. With its exceptional performance, durability and ease of use, it is a valuable addition to any industrial installation, helping to increase productivity and operational efficiency.
